Keylex 3100 Series
for Access Control of Narrow Frame Doors
Suitable for aluminum narrow stile framed doors, including storefronts, with keyless entry and management. Retrofitted to be compatible with Adams Rite deadlatches. Ideal for both indoor and outdoor use.
Specifications
- No electrical work required
- Easy to reset passcode
- Highly visible and durable buttons
- High security and weather proof
- Changeover to Free-Passage mode ( Option )
- Material: Aluminum
- Passcode: 4,096 combinations
- Door thickness: 45mm - 55mm ( 1 3/4'' - 2 3/16'' )
- For door weight: Up to 60 kg ( 132.27 lb )
- Handle can be changed for both right-handed and left-handed use
- Key options: Both key different and key alike available
- Ilco Key-In-Lever cylinder integrated
- Adams Rite standard deadlatch compatible (https://www.adamsrite.com/en/products/deadlatches/4510-standard-duty-deadlatch)
- Adams Rite puddle (both supporting PUSH and PULL) is bundled for interior side
Easy Passcode Reset
Change and set passcode easily without removing lock from door

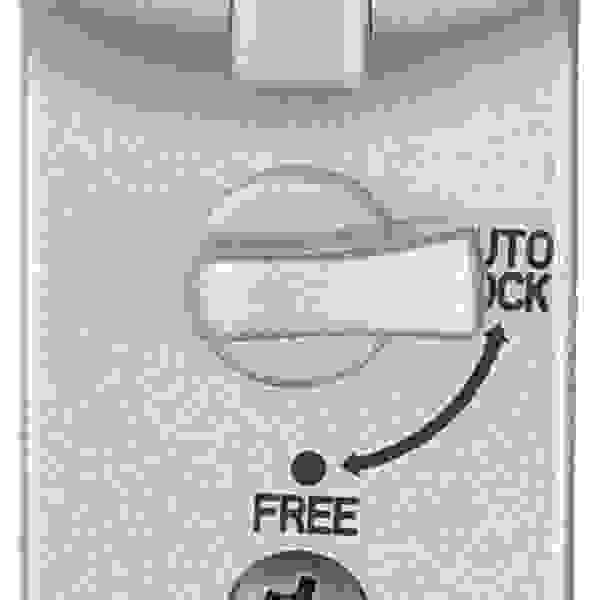

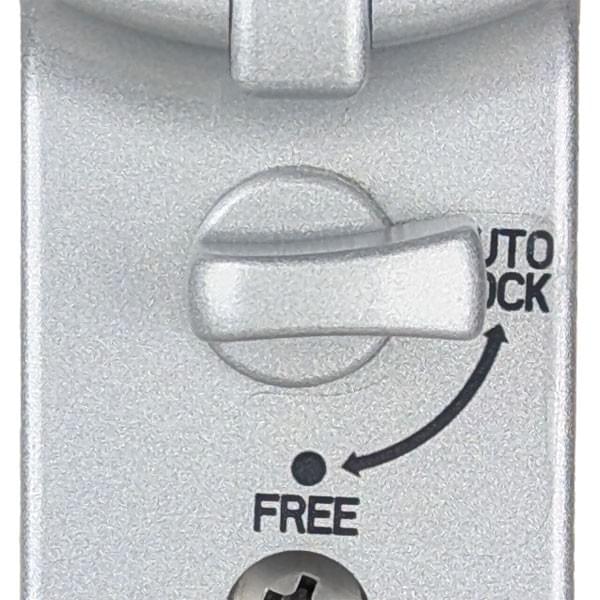

Free-Passage
2 operation modes
- Auto Lock – Passcode or key needed
- Free – No passcode needed
(Free-Passgae is applicable to K323AF only)

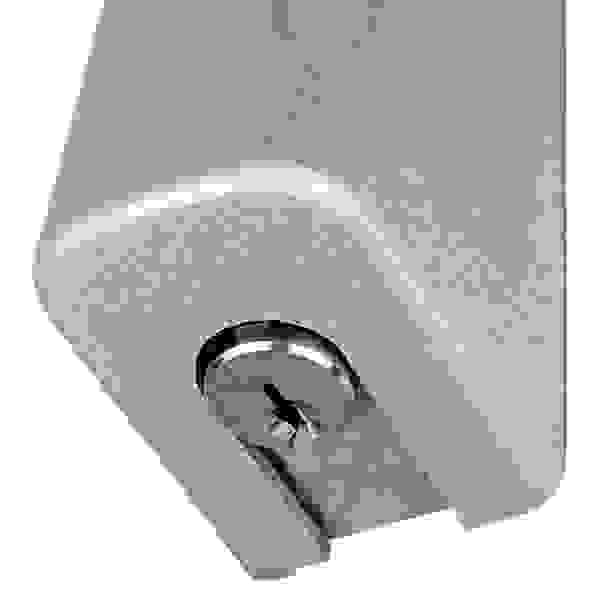

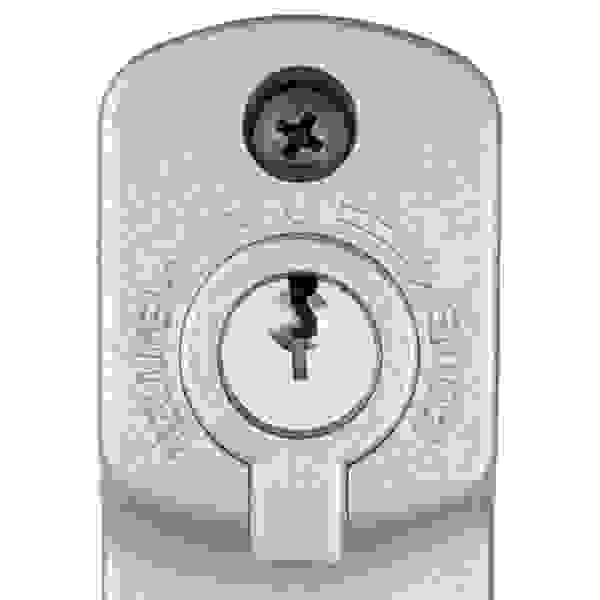

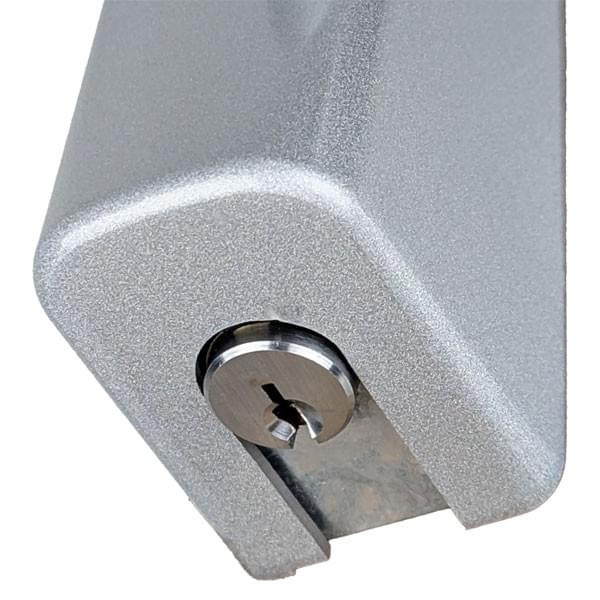

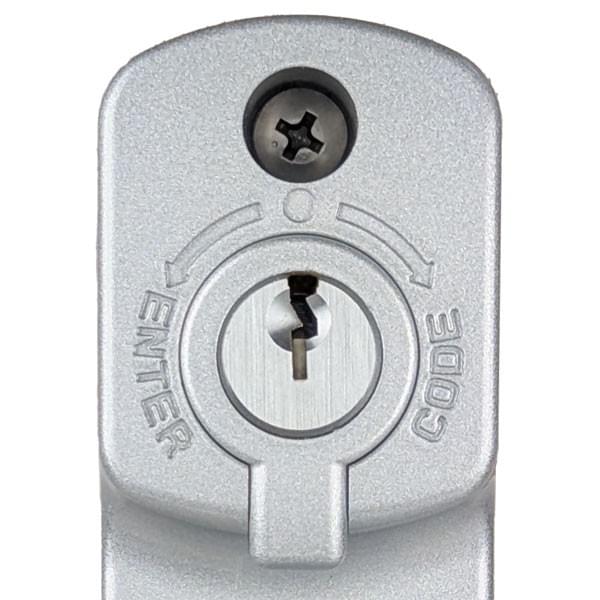

Key Accessibility
The door can be unlocked with a key without using a passcode

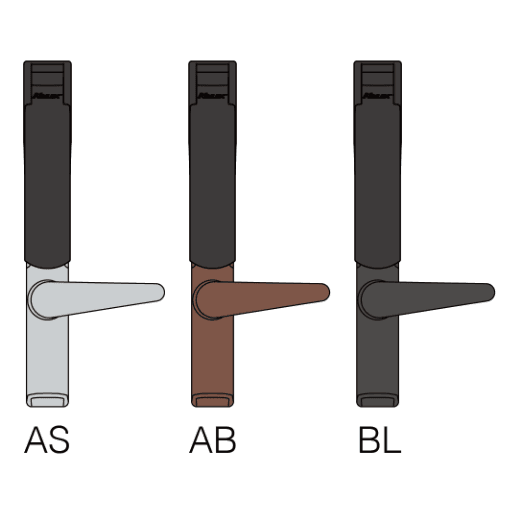

Color Variations
3 color options available
- Silver Painting (AS)
- Amber Painting (AB)
- Black Painting (BL)
Downloads

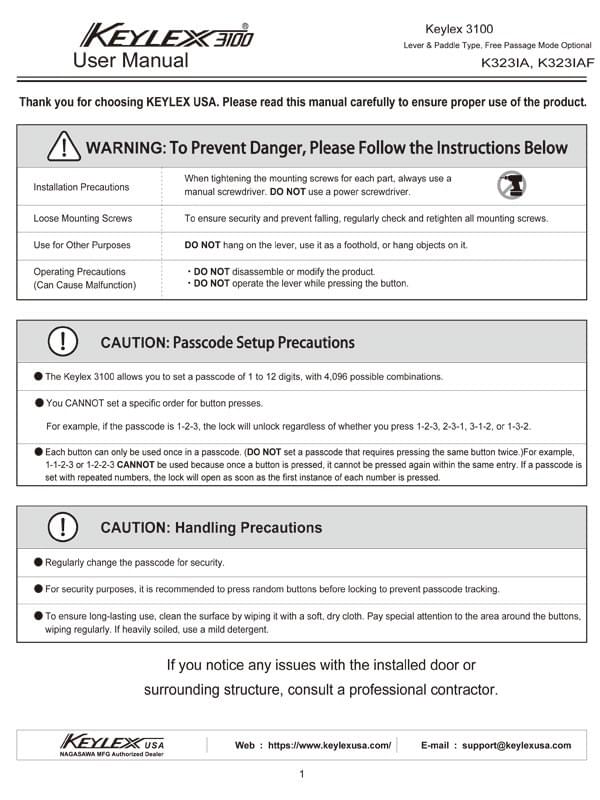

Keylex3100 User's Manual
K323IA K323AF

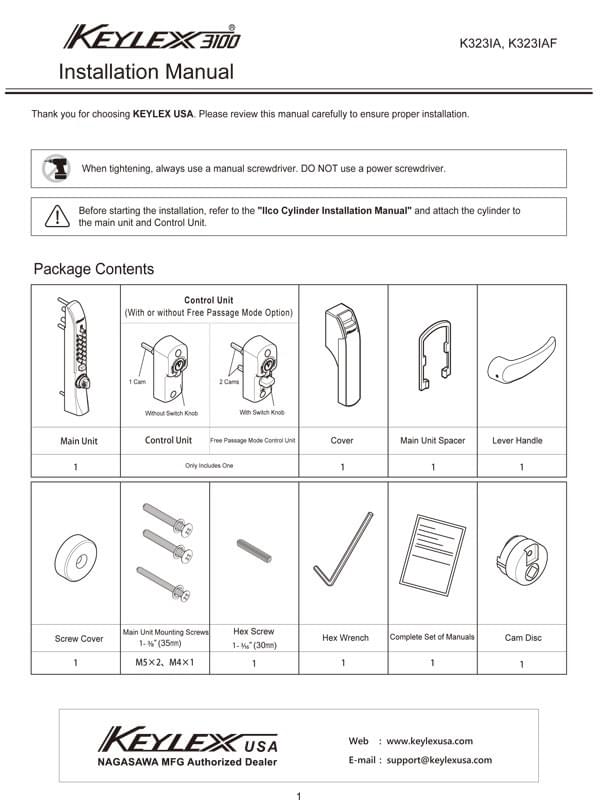

Keylex3100 Installation Manual
K323IA K323AF

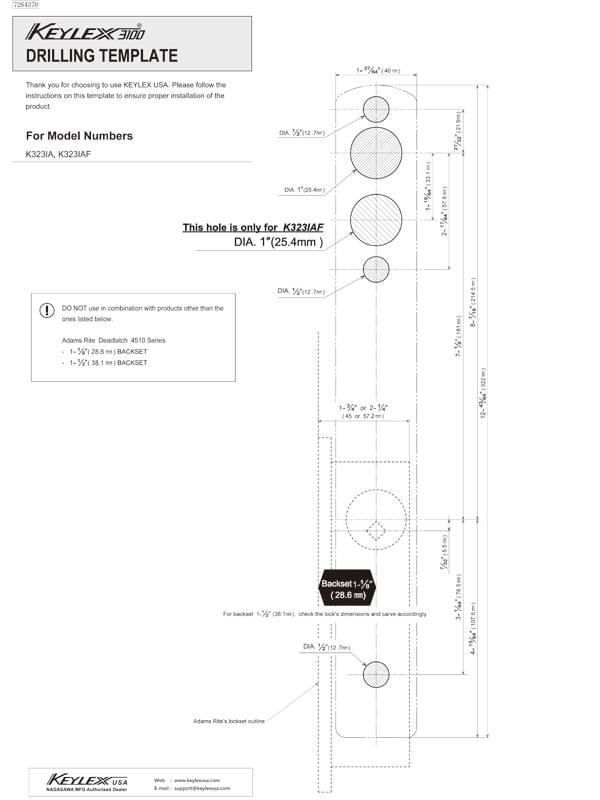

Keylex3100 Drilling Template
K323IA K323AF

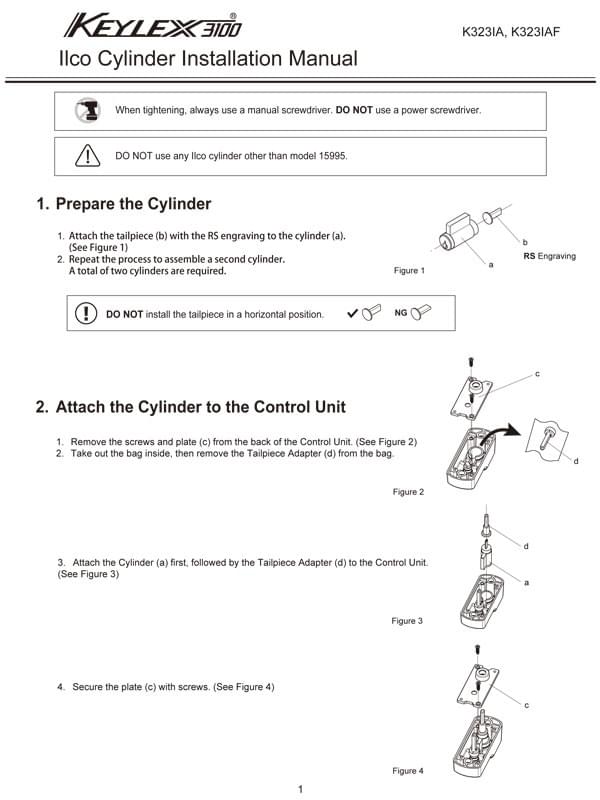

Keylex3100 Cylindar Installation Manual
K323IA K323AF
